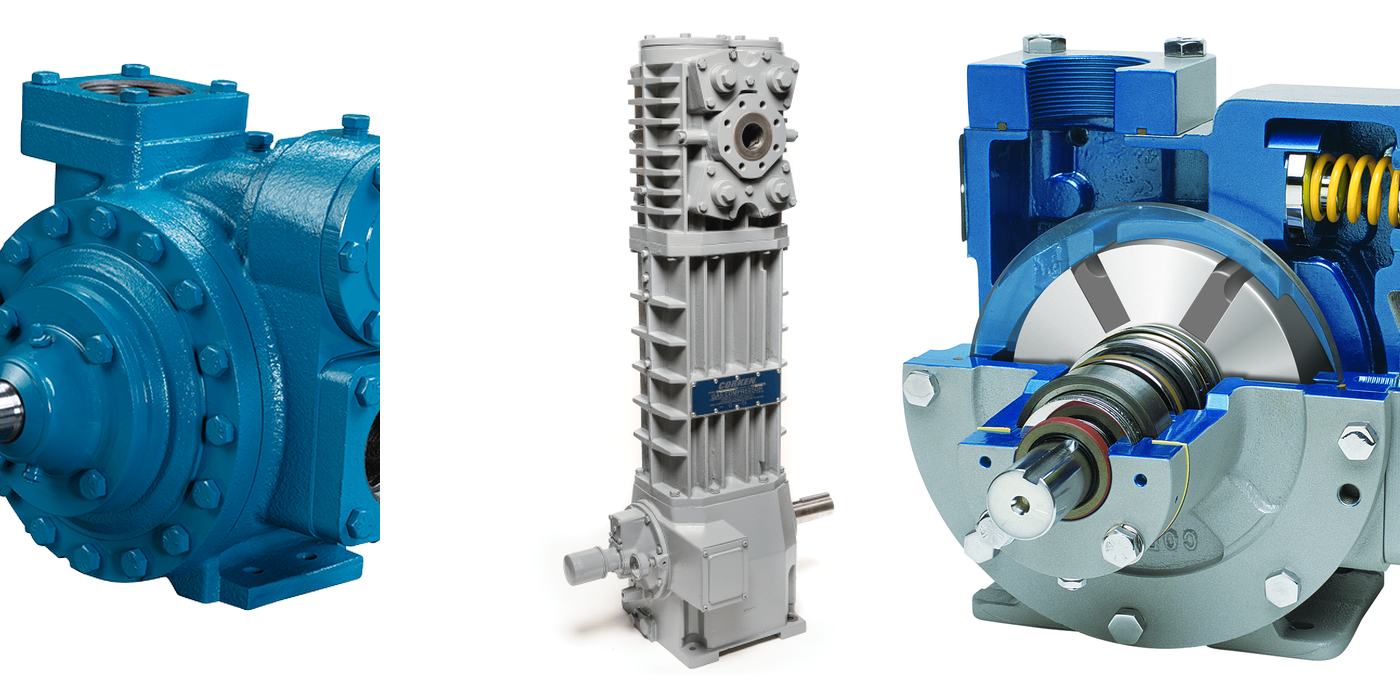

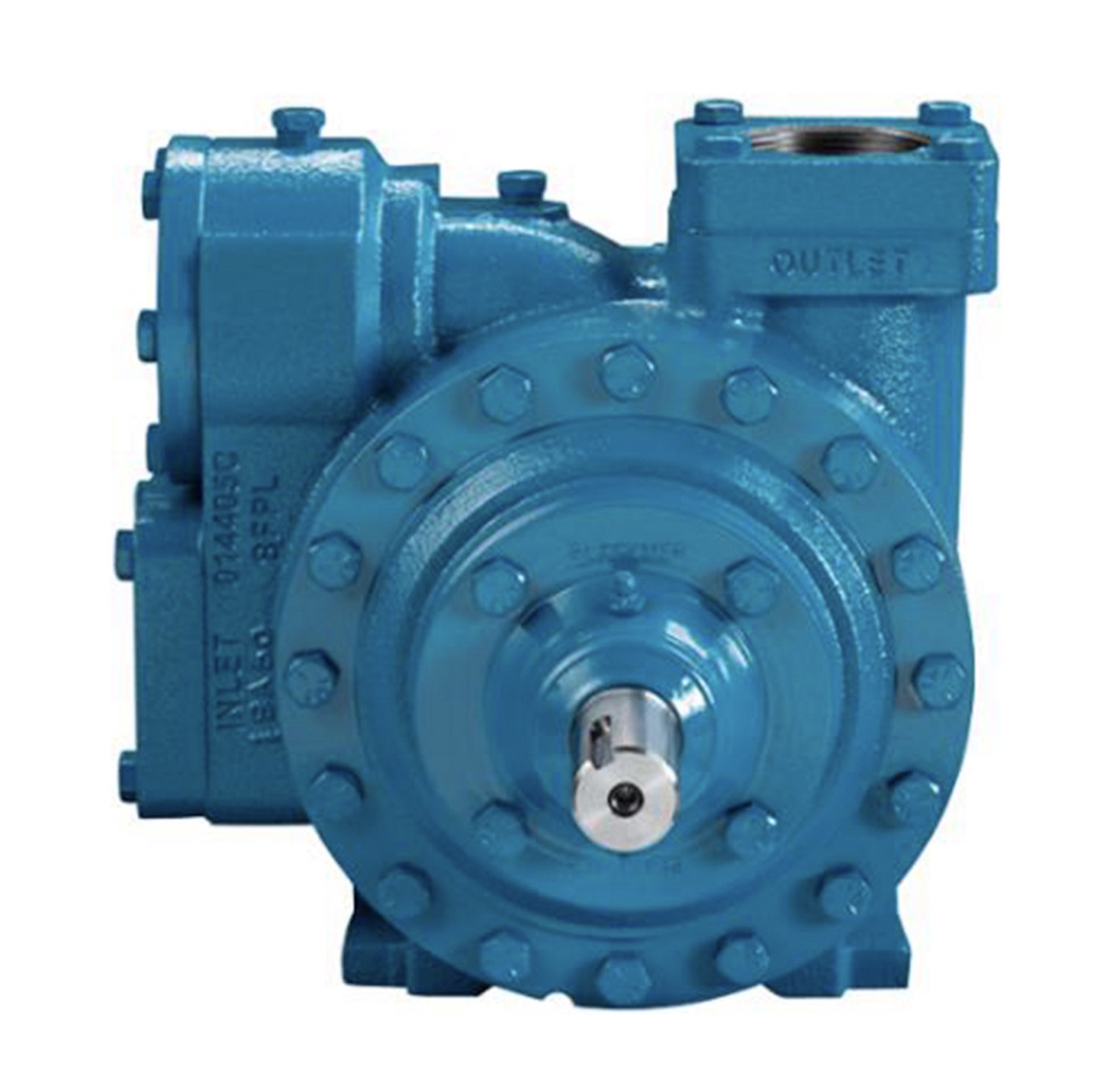

BLACKMER

SLIDING VANE PUMPS

LGLD 2" - 4"

Application: LPG (liquefied petroleum gas)

As part of the Cavitation Line of sliding vane pumps, these LGLD propane pumps are ideal for propane, LPG, butane and anhydrous ammonia applications including bulk plant service, multiple cylinder filling applications, vaporizers, bobtails and transports. All LGLD propane pump models have an internal relief valve, and a replaceable casing liner and end discs for easy rebuilding of the pumping chamber if ever necessary. In addition, these pumps feature cavitation suppression liners to reduce noise, vibration and wear.

Blackmer® LGLD2 propane pumps are often mounted to the chassis of a bobtail, or to a steel pad that is welded to the tank. The 3- and 4-in rotary vane pump models can be mounted to a transport in a number of different ways, generally near or between the tank landing gear brackets.

BLACKMER LPG-PUMP, bare

for positove suction head, with mechanical seal, pump case material  ductile iron ASTM A 536        ,

 FAS-BLACKMER PUMP UNITS

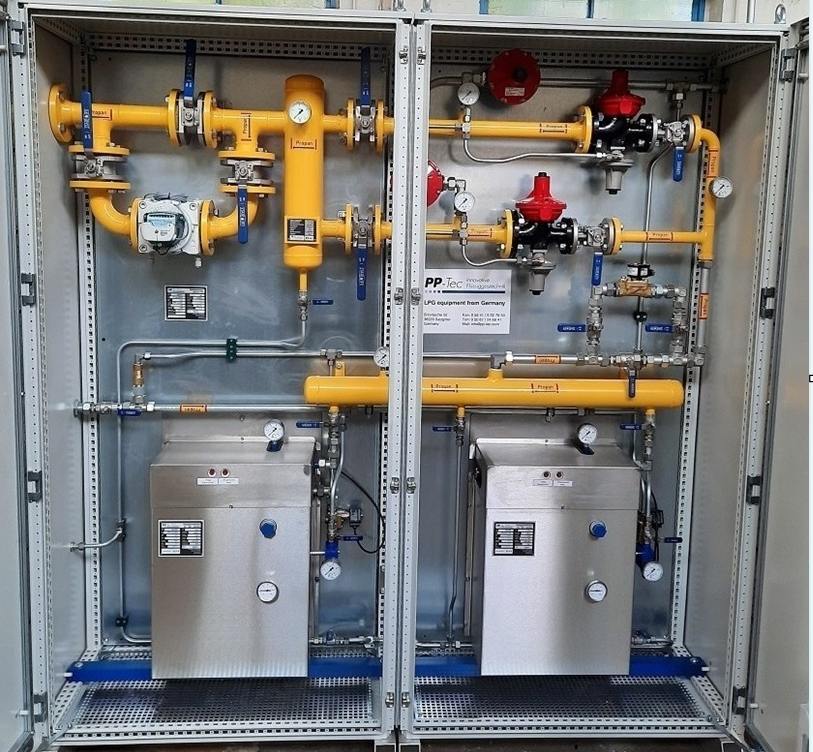

The PPTEC-ENERGY industrial vaporizers are fully automatic dry-running vaporizers with capacities of 40, 60, 80, 100, 120, 140, and 160 kg/h.

They feature precise heating temperature control and monitoring via PT100 sensors and redundant flood protection. For maximum operational safety, each vaporizer is equipped with a solenoid valve controlled by the PT100 sensor and a float switch in the internal liquid separator. Additionally, overheat protection with safety shutdown ensures safe operation.

The units are delivered ready for use and come equipped with filters, pressure gauges, thermometers, and ball valves at the inlet and outlet.

The electrical equipment complies with DIN VDE 100 for Ex Zone II.

Key Technical Advantages of PPTEC-ENERGY Industrial Vaporizers:

• Constant monitoring and control of temperature, pressure, flood protection, and capacity without additional upstream or downstream equipment
• Highly precise temperature monitoring via a centrally installed PT100 sensor inside the vaporizer body
• Simple and flexible operating temperature adjustment
• Each vaporizer includes an integrated liquid separator, complete with drain connection and ball valve
• The liquid separator also functions as a mechanical safety element (flood protection)
• Visual operational monitoring: indicators for heating operation (On/Off) and solenoid valve position (Open/Closed)
• Cleaning connection allows maintenance without disassembly or operational interruption

Application: LPG Road Tanker - LPG Terminals

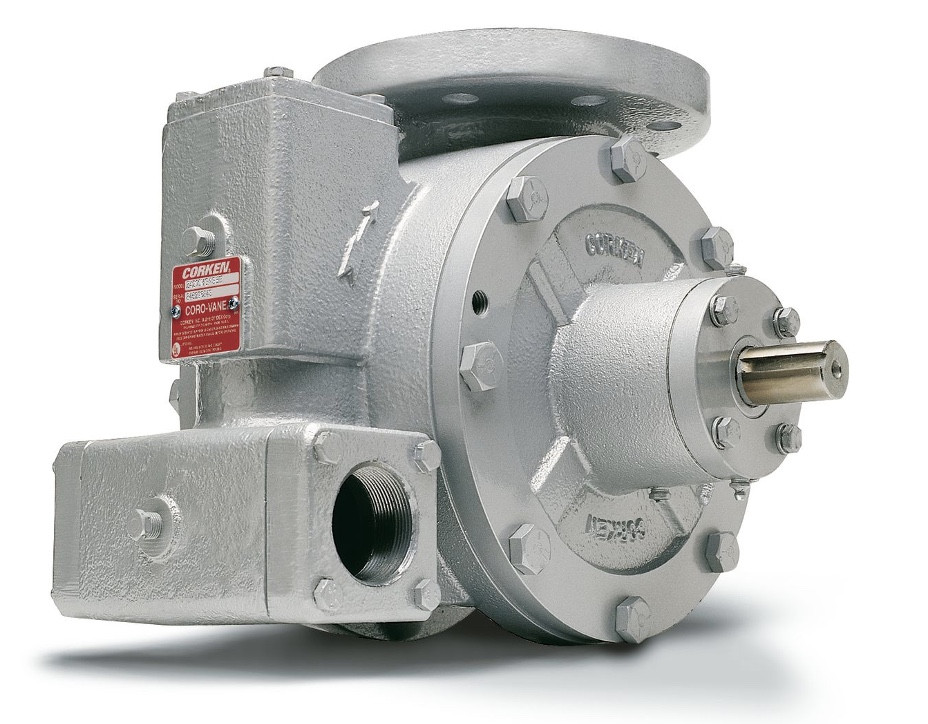

CORKEN PUMPS Z MODEL SLIDING VANE VERSION: Z2000; Z3200; Z3500; Z4200; Z4500
The CORKEN pumps Z-Series are a new generation of truck pumps specifically designed to comply with the pumping requirements demanded by the LPG industry. Bulk delivery of LPG requires the use of heavy duty, reliable equipment and is an important part of every LPG marketer. The equipment used in modern bulk trucks must be designed and constructed to perform in a broad spectrum of operating conditions.

The operating conditions of a truck pump are very demanding, and only a pump designed to perform under these extreme conditions can successfully do the job day in and day out. The Corken pumps Z-Series are specifically designed to perform in such severe operating conditions as high differential pressure, pump overspeeding, poor suction conditions and heavy thrust loads associated with a power take-off (PTO) drive system.

1. Controlling thrust loads and cavitation are critical for extended pump life.
2. Large diameter non-metallic pins are not speed sensitive so you can operate the pump at a higher RPM and not damage the pump.
3. High tech materials used on cam and blades extend the life of the pump.
4. Up to 7% or more capacity at 640 RPM.
5. Unlike other three-inch stationary pumps rated at 640 RPM, the Z3500 is rated up to 800 RPM providing higher capacity without damage.
6. Maintenance is made simple. When it becomes necessary to service the pump, all you need to do is remove twelve head bolts to inspect the bearings, seals, sideplates, rotor, vanes and vane drivers.
7. Retrofits the Corken model 1021 pump and other three-inch competitive pumps with little or no change in piping.

Corken pumps Z-Series available in 2”, 3” and 4” sizes known as Z2000; Z3200; Z3500; Z4200; Z4500 pumps

CONSTRUCTION:

1. Designed for high pressure applications with a maximum working pressure of 27.6 bar
2. Available in foot and truck mounted designs
3. O-ring construction
4. Six vanes/blades design with vane drivers
5. Mechanically seal design with silicon carbide seal seat
6. Depending on the model, available with NPT or Class 300 RF flanges
7. Hydraulic drive option available

MATERIALS:

1. Pump casing and heads: Ductile iron
2. Cam and sideplates: Gray iron
3. Rotor and flanges: Ductile iron
4. Seal seat: Silicon carbide
5. O-rings: Buna-N, PTFE, Viton®, Neoprene®. (Registered trademark of DuPont)
6. Blades: Advanced polymers

FEATURES:

1. Self-adjusting sliding blades and blade drivers maximizes performance
2. Replaceable cam and sideplates and sideplates are reversible for twice the life
3. Removing the pump head gives full access to the internals without disturbing the piping
4. Can handle small amounts of vapor
5. The excellent suction lift is great for clearing suction and discharge lines
6. Internal relief valve is pre-set at the factory and is not adjustable

CORKEN PUMPS  Z2000; Z3200; Z3500; Z4200; Z4500, bare

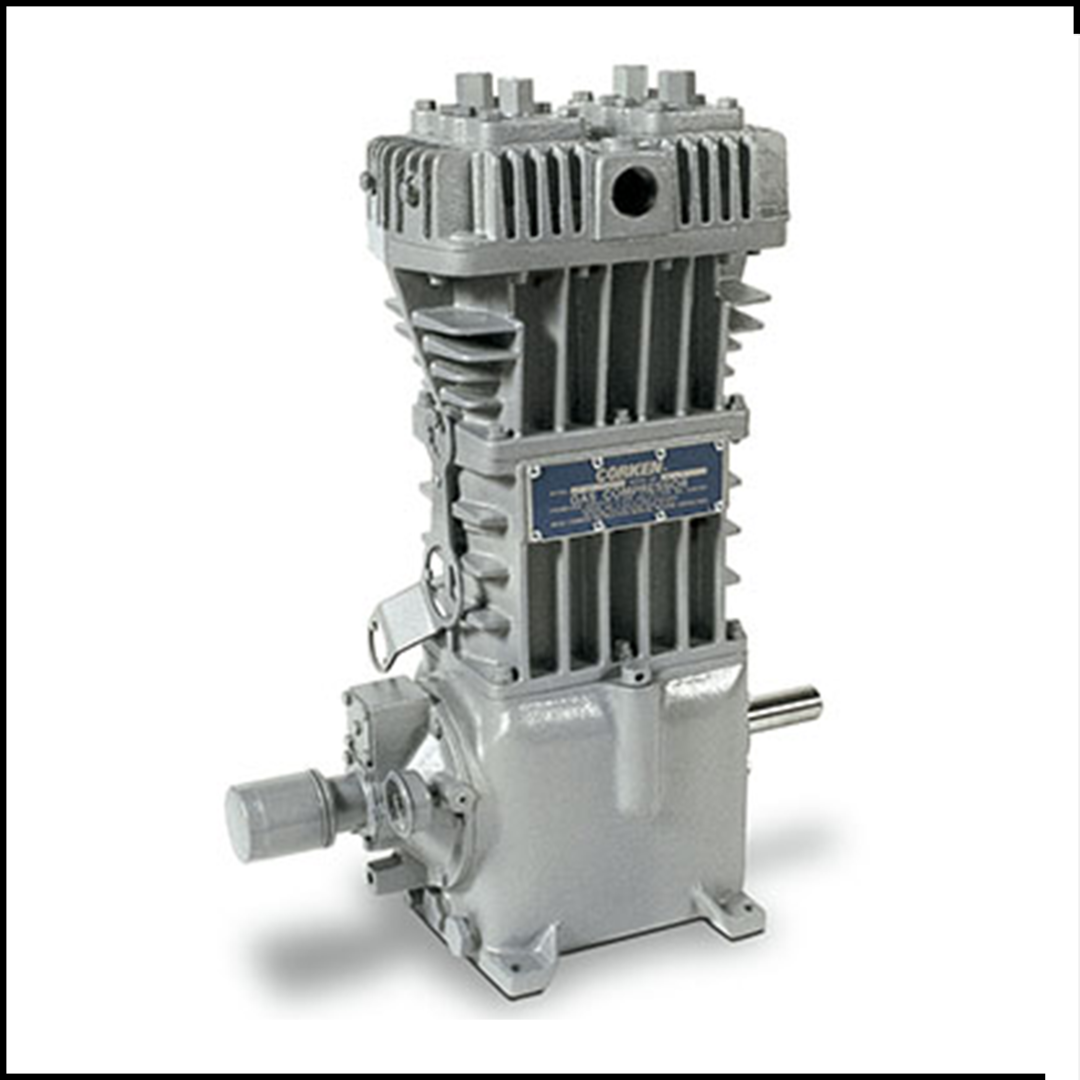

OIL-FREE DRY RUNNING PISTON COMPRESSOR TYPE CORKEN 691

Application: LPG loading & unloading

road tankers, terminals, rail tank cars, tank ships

 Compressor Type CORKEN 691

• Housing material ASTM A 536
• Inlet-Outlet: 2 ½ “ NPT IG
• Number of cylinders: 2
• Stroke volume flow: 96 m3 / h
• MIN inlet pressure: 0.21 bar
• MAX outlet pressure: 23.1 bar
• Weight: 338 kg

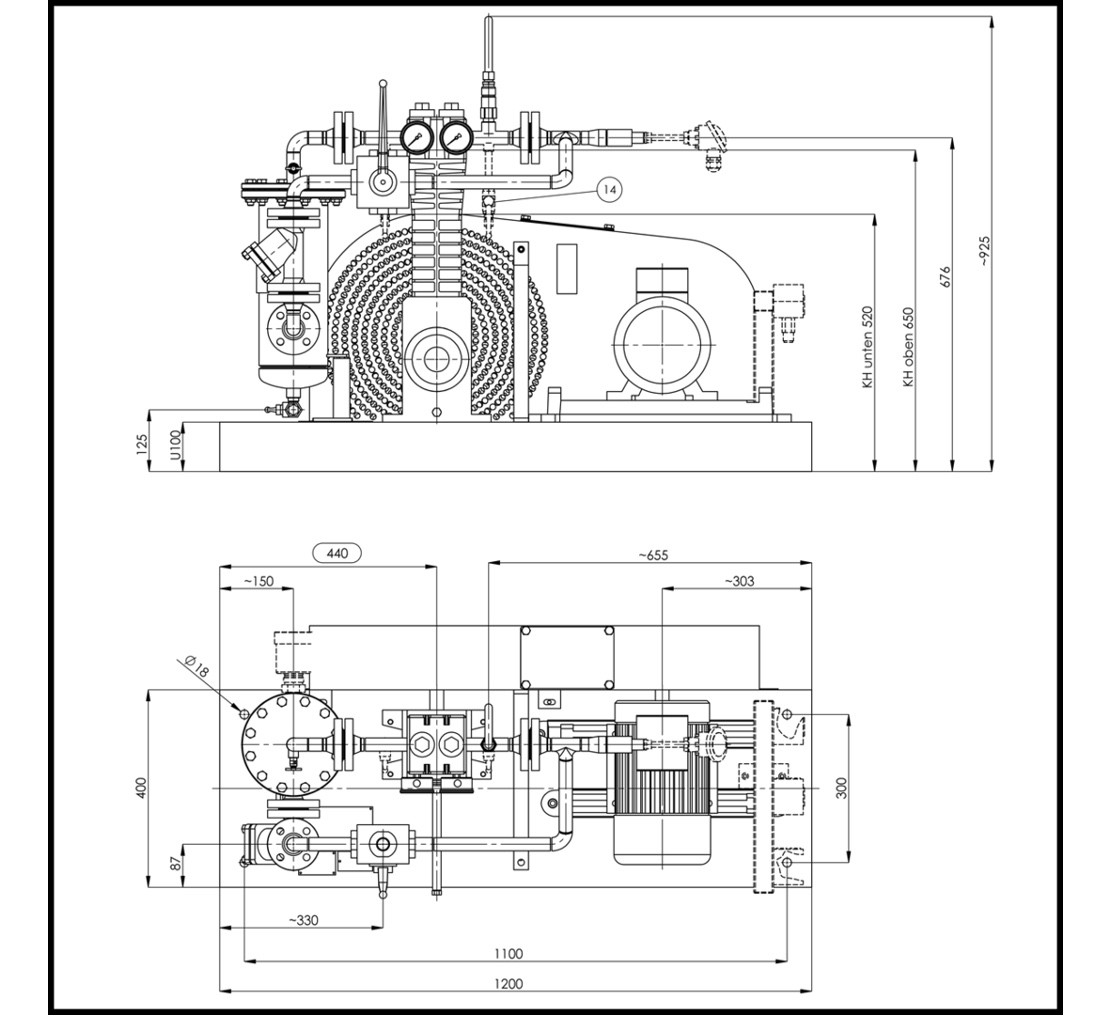

Compressor unit Type FAS/CORKEN 691

Completely built on a base plate. Consisting of:

• Compressor: CORKEN 691
• Liquid trap, filter, manometer, 4-way ball valve
• Motor including V-belt and belt guard
• Ex 400/690 V, 50Hz, IP 54.
• Motor power 17,5 KW
• MIN; MAX pressure monitoring - Oil pressure monitoring
• Weight: 640 kg
• Dimensions: 1500x780x1220

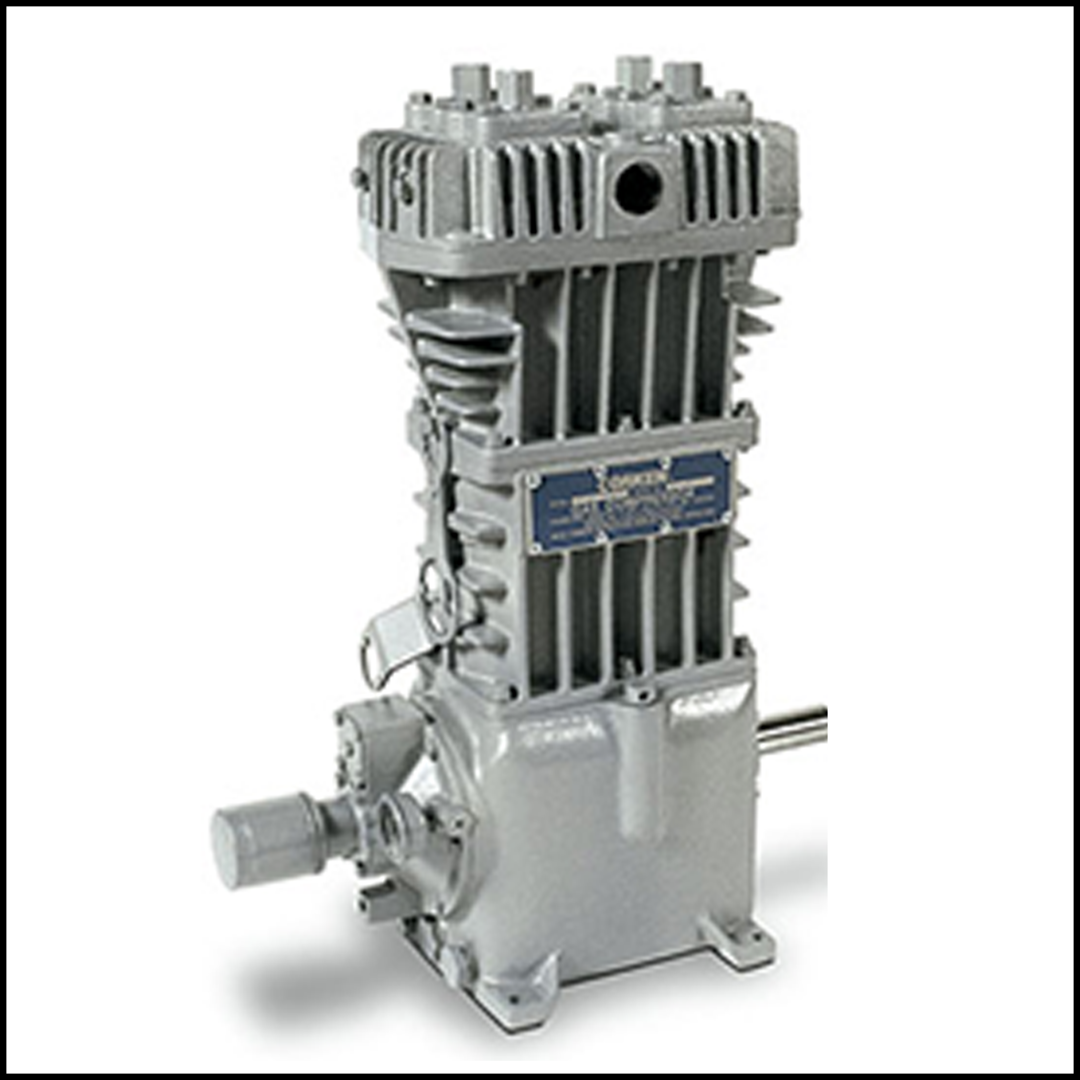

OIL-FREE DRY RUNNING PISTON COMPRESSOR TYPE CORKEN 491

Application: LPG loading & unloading

road tankers, terminals, rail tank cars, tank ships

Compressor Type CORKEN 491

• Housing material ASTM A 536
• Inlet-Outlet: 1 ¼“ NPT IG
• Number of cylinders: 2
• Stroke volume flow: 58 m3 / h
• MIN inlet pressure: 0.21 bar
• MAX outlet pressure: 23.1 bar
• Weight: 177 kg

Compressor unit Type FAS/CORKEN 491

Completely built on a base plate. Consisting of:

• Compressor: CORKEN 491
• Liquid trap, filter, manometer, 4-way ball valve
• Motor including V-belt and belt guard
• Ex 400/690 V, 50Hz, IP 54.
• Motor power 10 KW
• MIN; MAX pressure monitoring - Oil pressure monitoring
• Weight: 380 kg
• Dimensions: 1320x640x1020

OIL-FREE DRY RUNNING PISTON COMPRESSOR TYPE CORKEN 91

Application: LPG loading & unloading

road tankers, terminals, rail tank cars, tank ships

Compressor CORKEN Type 91

• Housing material ASTM A 536
• Inlet-Outlet: ¾ “NPT IG
• Number of cylinders: 1
• Stroke volume flow: 13.5 m3 / h
• MIN inlet pressure: 0.21 bar
• MAX outlet pressure: 23.1 bar
• Weight: 68 kg

Compressor unit Type FAS / CORKEN 91

Completely built on a base plate. Consisting of:

• Compressor: CORKEN 91
• Liquid trap, filter, manometer, 4-way ball valve
• Motor including V-belt and belt guard
• Ex 400/690 V, 50Hz, IP 54.
• Motor power 3.6 KW
• MIN; MAX pressure monitoring - Oil pressure monitoring
• Weight: 220 kg
• Dimensions: 1200x530x940

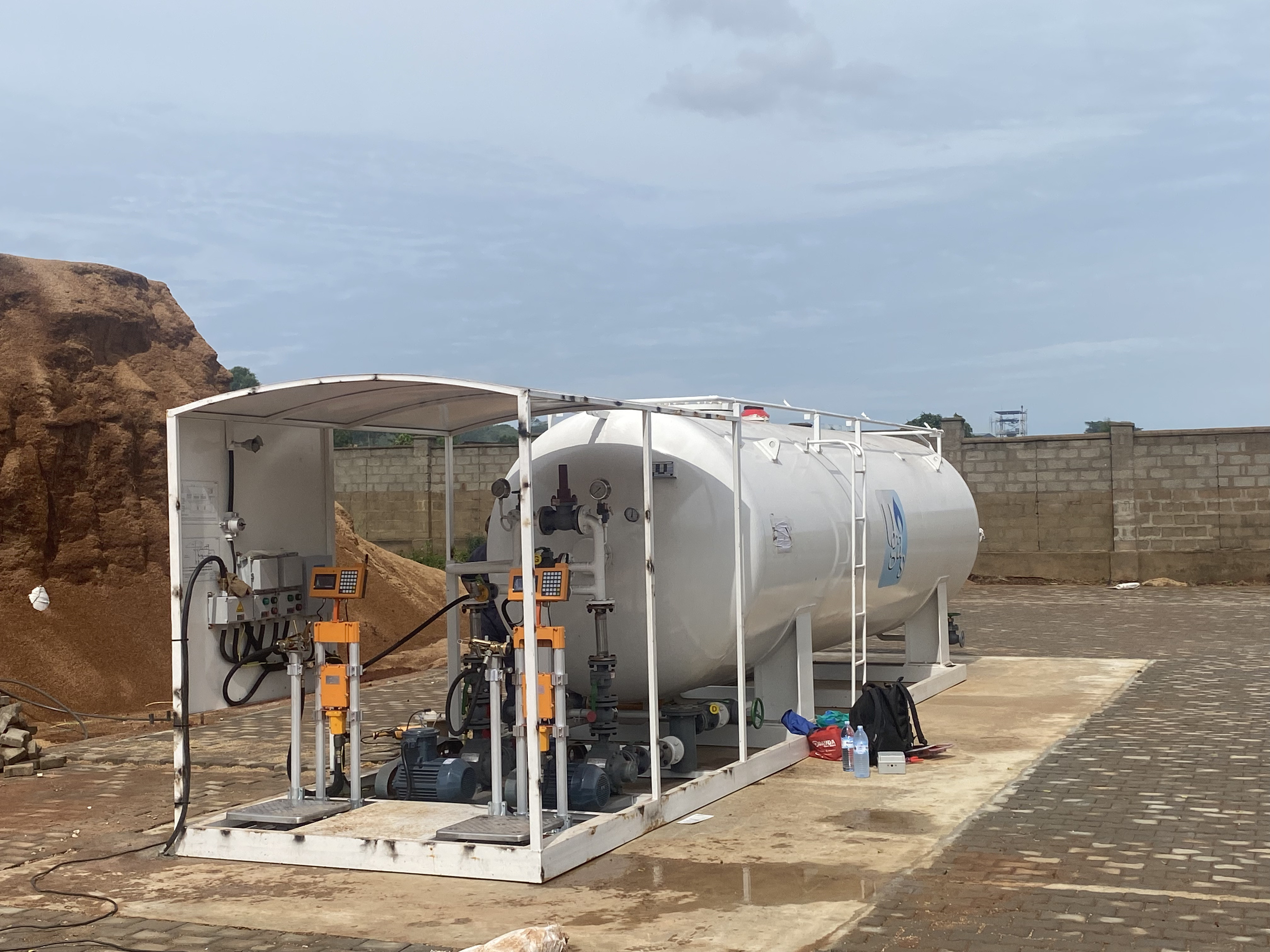

We specialise in providing reliable and efficient LPG skid plants to meet your needs. Recently, we successfully installed and commissioned an LPG skid unit in an upcountry region of Uganda.
The skid plant features:

• A 10MT Storage tank
• Two Filling scales
• Two pump units, one in operation and other as standby for uninterrupted service

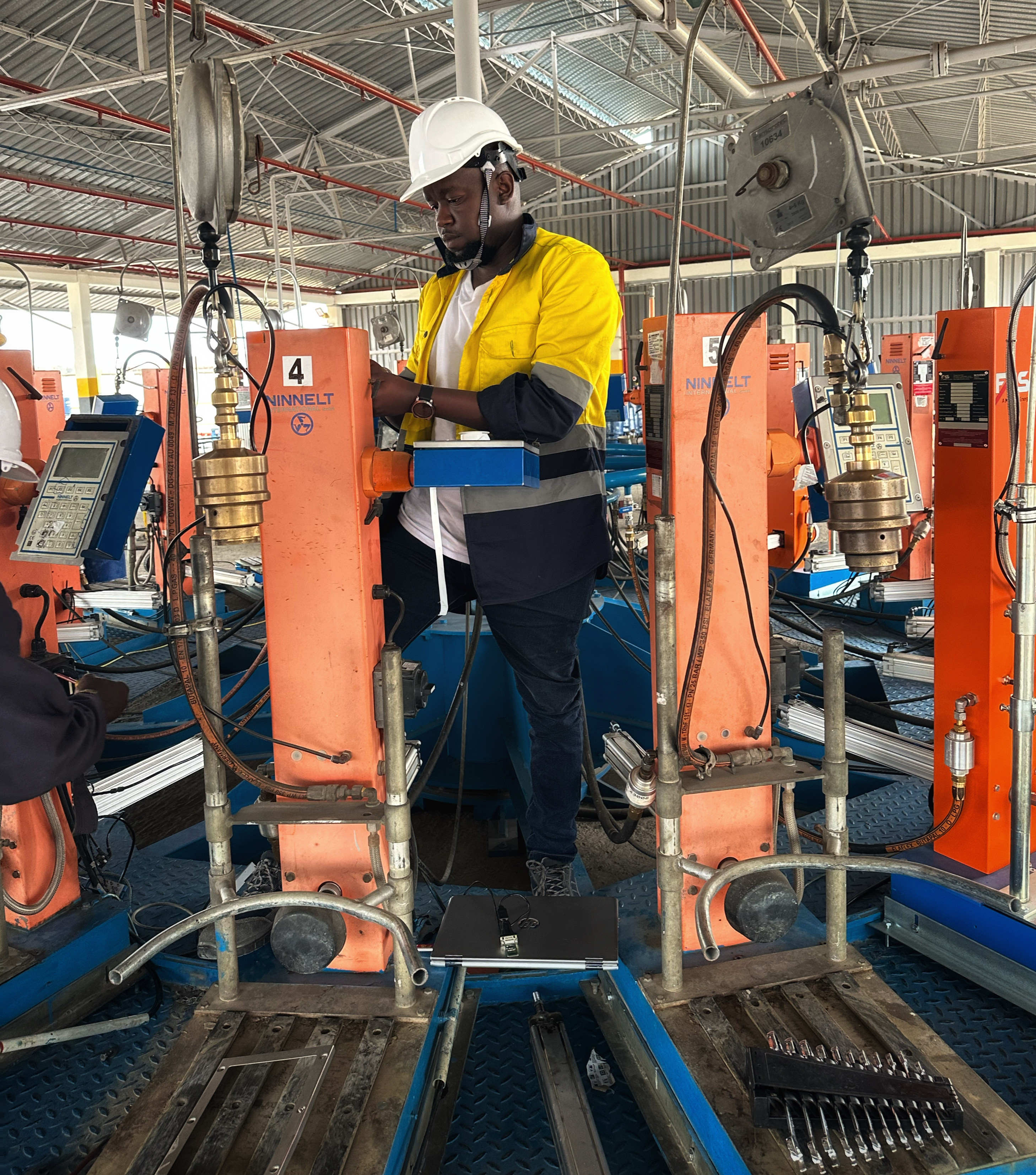

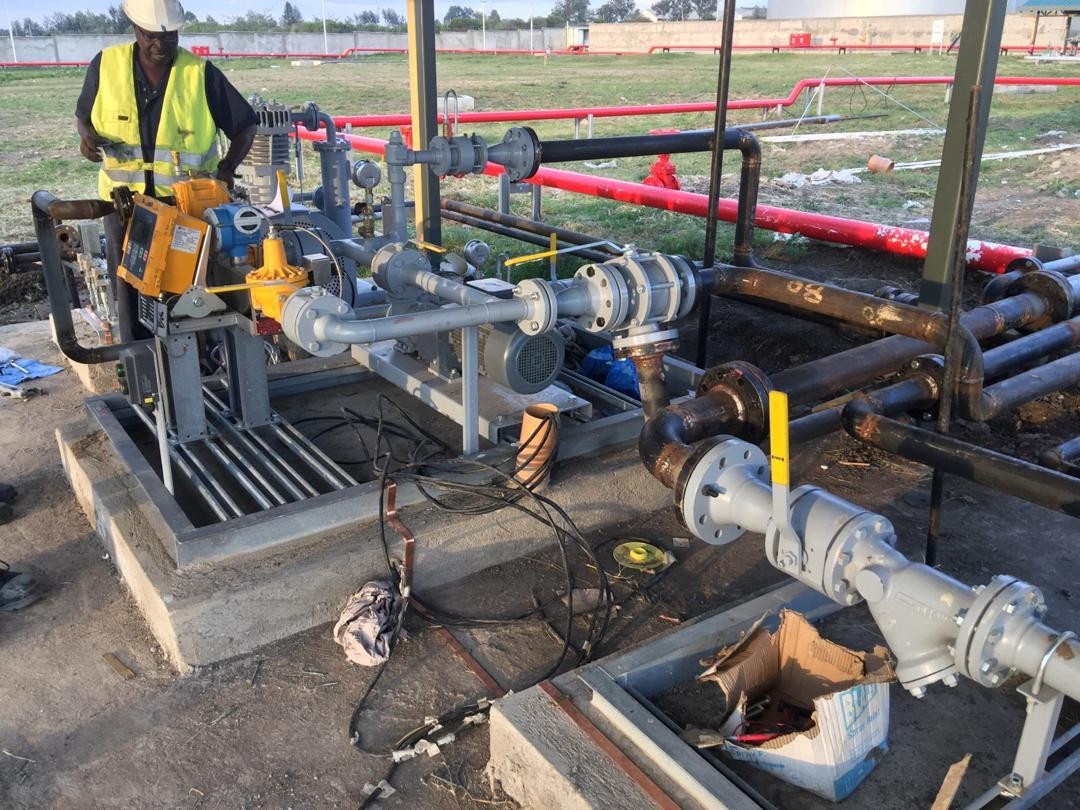

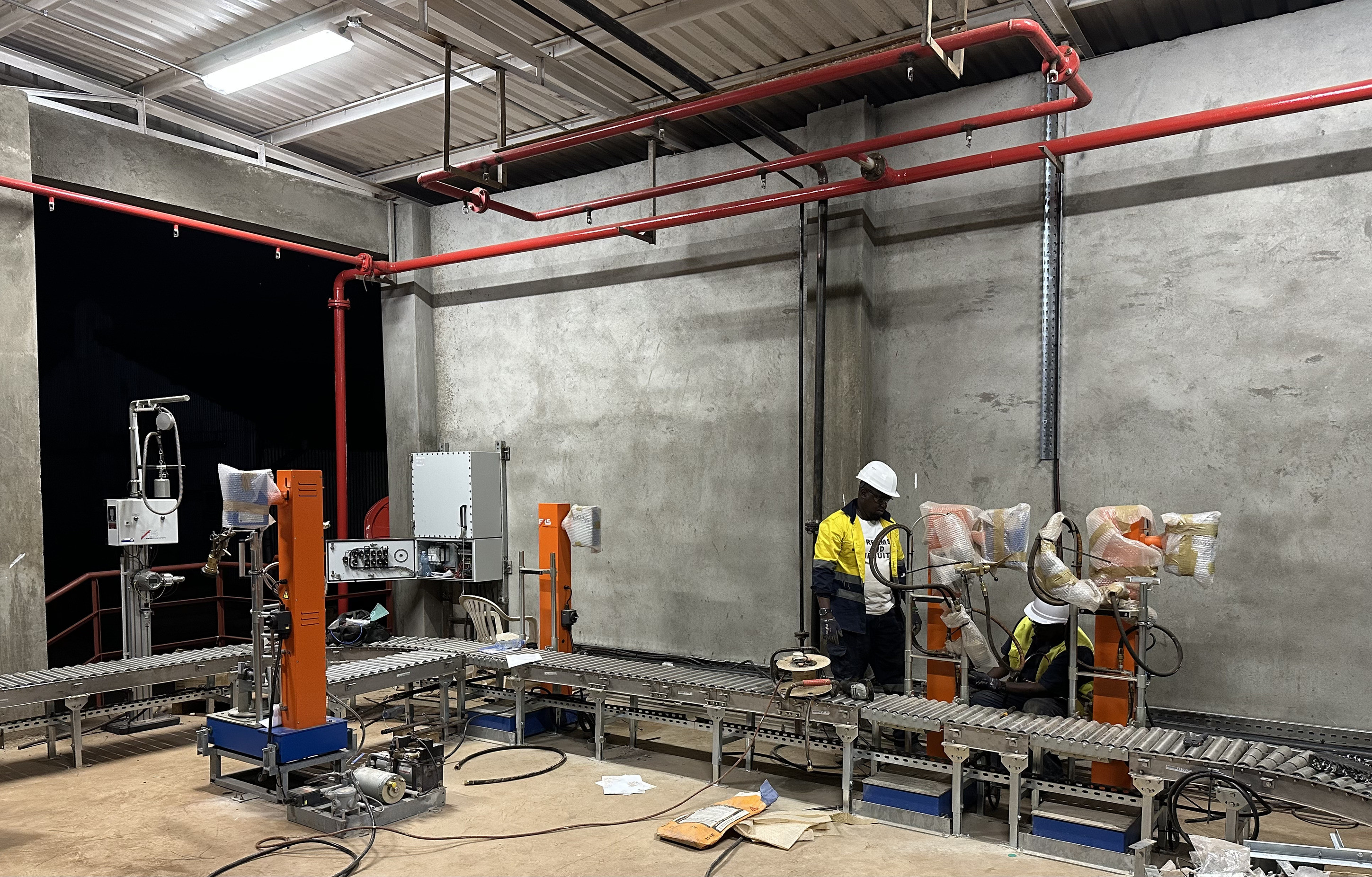

Our team is hard at work on an ongoing LPG filling plant installation and final commissioning for a valued client. We remain committed to delivering safe, reliable, and timely solutions—every step of the way.
